Diagnostics and configuration of the modules Ford Focus 2, C-Max I.

Attention! Before purchasing the application set FFConfigLite version to test the connection with cars.

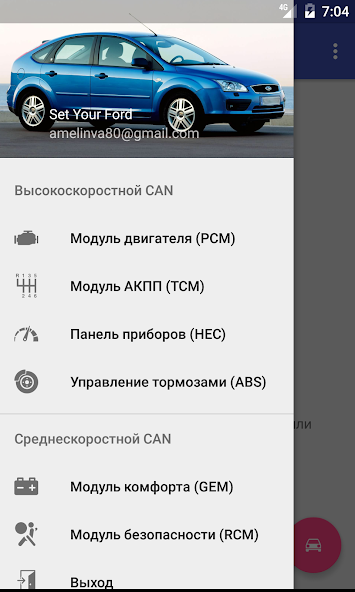

Connect to Ford Focus 2, C-Max, using ELM327 or ELS27 and you can work with the following modules that are connected to the CAN-bus:

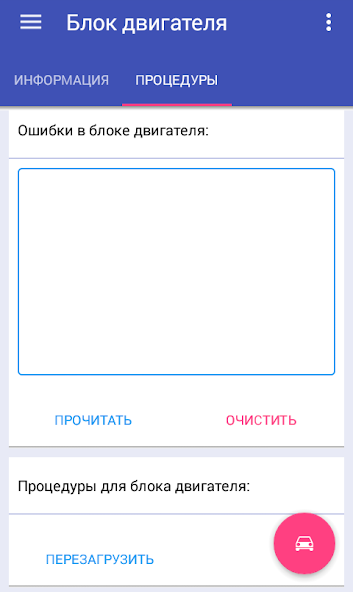

Engine block: Information on the module, reading, error reset, module reboot, reset the long-term fuel adjustment (KAM) for:

ESU-411/418(1.8 125/2.0 145)

SIM28/29(1.4 80/1.6 100/115)

ESU-121(1.8 120/2.0 145).

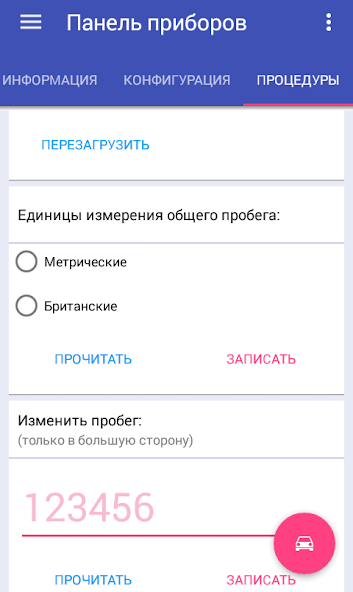

Dashboard: Information on the module, reading, reset errors, the module configuration, the module reboot, change the unit for the total mileage, mileage correction.

-Brake control: Information on the module, reading, reset errors, the module configuration, the module reboot, DDS calibration reset, pumping the brakes.

-Comfort module: Information on the module, reading, reset errors, the module configuration, the module reboot.

-Safety module: Information on the module, reading, reset errors, the module configuration, the module reboot, reset crash data.

-Transmission control module: information on the module, reading, reset errors, reset KAM.

-Climate control module: information on the module, reading, error reset

-Audio module: module information, reading, error reset, radio code definition (for M series).

In order to fully use the application and gain access to more auto modules, you need to spend a little time and modify the adapter ELM327.

To do this, set the switch as described here:

Http://forffclub.narod.ru/index/0-2

ELS27 can be purchased at: https://els27.ru/. For use the application via ELS27USB-set the speed 38400, for ELS27BT-2 000 000 using the utility ELS27 Baudrate.
